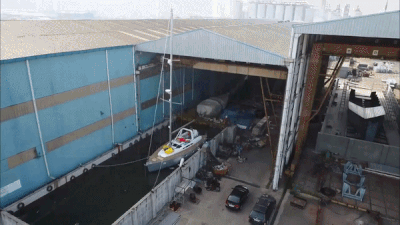

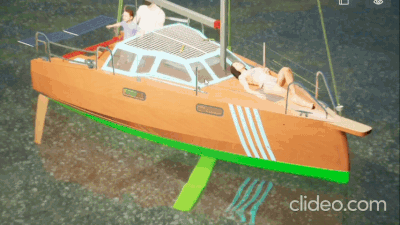

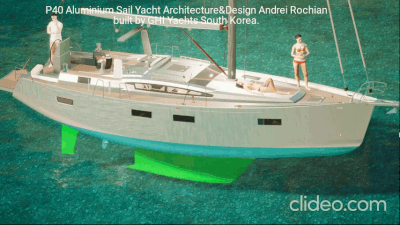

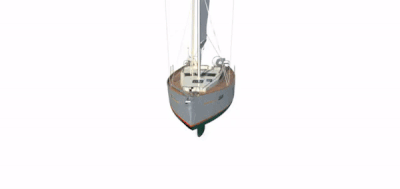

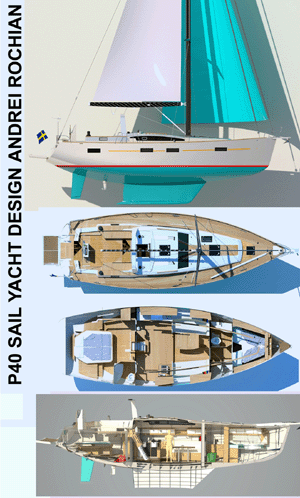

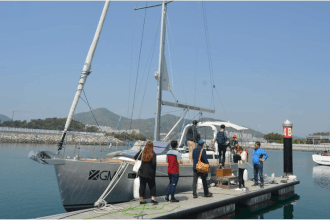

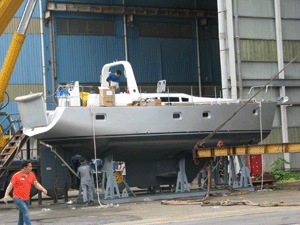

SAIL YACHT CUSTOM BUILDING ; RESTORATION; SAIL YACHT DESIGN; SAIL BOAT PLANS *Andrei Rochian P40 Aluminium Sail Yacht 2016. A new and powerful Alumium Sail Cruiser built by our partner expert Top Aluminium Shipyard in South Korea. First unit has beeen successfully launched and delivered to owner August 2017 WE CONSTANTLY CREATE and DEVELOP our range of SAIL YACHT DESIGNS for Extended Sea and Ocean Cruising ; for series production in Aluminium , Steel , Fiberglass ; Wood by yacht and boat manufacturing companies; as well as for cost efficient construction in plywood/epoxy by individual owners who wish to build their own boat . WE UNDERTAKE SAILING YACHT CUSTOM BUILDING PROJECTS - based on our designs or design provided by Owner,BEST QUALITY; MOST COMPETITIVE PRICE , by our craftsmen; in Aluminium Steel fiberglass-composite advanced vacuum infusion technology; or in cold molded wood& epoxy. Our Sail Yachts Design Packages typically consist of a number of CAD and/or print drawings and files : 1.Specifications2.Hull &Deck Lines3.Hydrostatics calculations4.Exterior view5.Floor PLan6.Deck Plan7.Interior Elevations(Sections)8. Construction Plan9. List Of Materials10.Lamination Schedules Hull &Deck11.Weights List12.Engine Room13.Steering14.Sail Plan15.Plumbing System16.Electrical System17.Fuel system. 18.Framing&Structural Drawing Here below are our yacht designs brief DATA & SPECS: P40 ALUMINIUM SAIL YACHT Sail Cruiser Yacht Design- Andrei Rochian 2016 DATA & SPECS Material: Aluminium Specifications Length overall 40’00” / 11.19m Volvo-Penta saildrive 38hp Length waterline 34’10” / 10.62m Fuel 55gls / 210 l Beam 13’ 2” / 4.02m Water 96gls / 210 l Shoal draft 6’0” / 1.83m Salon Headroom 6’4”/ 1.94m Deep draft 6’0” / 1.83m Std Sail Area (furling) 883sqft / 82sqm Displacement (empty) 9.500kg Standard Features and Equipments White hull Aluminum Alloy Emergency tiller Steering wheel with leather cover Selden/Sparcraft furling mast / mainsail Furling headsail 6 Stainless Steel 316 cleats Lower swim platform with teak decking Teak on cockpit and helmsman seats Stainless steel swim ladder Hot & cold cockpit shower 2 Lewmar/Harken Halyard winches ST (40) 2 Lewmar/Harken Genoa winches ST (50) Selden/Sparcraft adjustable solid gas vang 40 amp battery charger 8 opening hatches, 8 opening ports Blinds on side windows and panoramic windows 12V start battery & triple AGM house battery bank w/ isolator Teak cockpit table with folding sides & storage box Nav station with instrument console Sound system w/ speakers in salon & cockpit w/ cockpit controls 3 burner stove with oven Double stainless steel sink Garmin GMI 20 bundle (speed, depth, temp & wind) port and stb. helms OceanAir hatch screens & shades Propane solenoid & regulator (incl. tank) 110/220V outlet in each cabin and 3 in galley Front loading refrigerator Manual & electric bilge pumps 110/220 V shore power cord Coast Guard package (dock lines, fenders, safety items) CE Certification Category A or KST or KR KR Quality Certification Mahogany interior joinery LED lighting "XPLORE 36 " SAIL CRUISER YACHT A Long Distance Bluewater Capable Sail Yacht Design- A.Rochian LOA.....................11,10m B ...................... 3.6 m Draft....................1.6 m Keel........................Bulb keel . Weight.................... 7000 kg. RCD .......................category B SAIL AREA..................... 60 sq meters *Fresh water tank 200 l POWER: *STEYR Diesel inboard / 45 hp. *2 Gori-Folding blade Propeller *2 Stainless Diesel tanks/ 150 l each "XPLORE 37 " POLYCHINE HULL SAIL CRUISER YACHT A SAIL YACHT FOR PLYWOOD EPOXY CONSTRUCTION Design- A.Rochian *Plywood&Epoxy Cost Efficient Construction The "PolyChine Hull" consists of a series of " developable" surafaces ; to be cut out of marine plywood ; based on patterns we supply within our Design Package. The Developable Surfaces are cut out of Plywood Sheets; reducing thus the time consuming round hull lofting time plug construction and fairing time; and allowing for 20%-30% faster hull&deck construction time. LOA.....................11,50m B ...................... 3.7 m Draft....................1.7 m Keel........................Bulb keel . Weight.................... 7800 kg. RCD .......................category B SAIL AREA..................... 69 sq meters "XPLORE 41 " SAIL CRUISER YACHT Sail Cruiser Yacht Design- A.Rochian DATA & SPECS LOA......................12,60m B ...................... 3.6 m Draft.....................1.6 m Keel.................. Bulb keel . Weight...............12000 kg. RCD.................. category B "XPLORE 53 " SAIL YACHT Design- A.Rochian LOA.....................16,10m B ...................... 4.32 m Draft....................2.3 m Keel........................Bulb keel . Weight.................... 16000 kg. RCD .......................category B SAIL AREA..................... 90 sq meters * XPLORE 36 ft CRUISING CATAMARAN Design A Rochian 2011 LOA=11.0 m B=5 .0 m Draft=1.0 m Displacement= 11 tons Sleeping= 5 berths Speed 10 knots Engines 2x 30 hp Diesel Fuel =600 liters Water =600 liters Hydraulic Steering Xplore 45 ft Sail Catamaran Design Andrei Rochian 2014 LOA 14 M/45.5 Ft BEAM 8.0 M DISPLACEMENT LIGHT 18T LOA 14 M/45.5 Ft BEAM 8.0 M DISPLACEMENT 18T * XPLORE 62 ft SAIL CATAMARAN Design A Rochian 2013 Construction of hull : composite biaxial fiberglass 15% vinylester; vacuum infused. Deck foam cored Herex rigid PVC foam core. Optionally: Teak deck on top. Deck Hardware Stainless steel. Keel is Hydrodynamically designed. Propeller folding Gori Rudders and Steering Systemtems Jefa Denmark Dimensions LOA 19.5 M BEAM 10.29 M DISPLACEMENT 27 T FUEL CAPACITY 4000 L WATER CAPACITY 2000 L Mainsail Area 128 m2 Genoa Area 88 m2 Sail Area 216 m2 Height of Mast (above the water) 27.28 m Headroom (salon) 2.12 m Headroom (hulls) 2.10 m NUMBER OF CABINS GUEST 6 NUMBER OF CABINS CREW 2 NUMBER OF BATHROOM LAVATORY 8 FREE DOWNLOADS: Downloadable 3D Rhino Model of Motor Boat Bottom Framing with Diesel Engine You may download the Finite Elements Analysis and CAD 3D Model of a Motor Boat Bottom Composite Fiberglass Framing with a Diesel performed by Scan and Solve FEA in Rhino 5.0 by paste in your browser the following link http://www.adrive.com/public/FkkMfP/bottom%20framing%20module%20with%20%20a%20%20diesel.3dm DRAWINGS AND ILLUSTRATIONS ON THIS PAGE ARE L&A Maritime SRL Property. Please do not copy ; do not use for commercial purposes ; do not reproduce without L&A Maritime SRL and Mr Rochian Andrei Specific writen approval. |
||||||||||||||||||||||||||||
|
